omniswitch-spb-network-debian

Inhaltsverzeichnis

Einfaches SPB-Netz mit Debian Workstations (VMs)

Dieses Beispielnetz verwendet die ALE „Intelligent Fabric“ (Auto-Fabric) und ist weitestgehend automatisch konfiguriert worden.

An diesem Artikel wird noch gearbeitet. :)

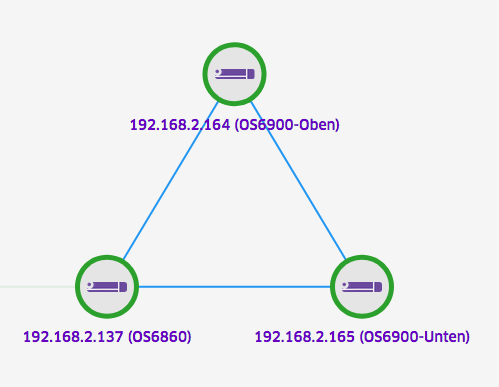

Netzwerkdiagramm

Konsolenausgaben

Die virtuellen Debian-basierten Systeme sind an folgenden Ports angeschlossen:

  • Debian9-WS1 → OS6900-Oben 1/1/3
  • Debian9-WS2 → OS6900-Unten 1/1/5
  • Debian9-WS3 → OS6860 1/1/7

Die VMs haben die IPs 10.10.10.1 / 10.10.10.2 und 10.10.10.3 und verwenden den VLAN-Tag 55. Die Konfiguration auf den VMs erfolgt wie folgt.

Debian9-WS1

sudo ip link add link ens7 name ens7.55 type vlan id 55
sudo ip addr add 10.10.10.1/24 brd 10.10.10.255 dev ens7.55
sudo ip link set dev ens7 up
sudo ip link set dev ens7.55 up

Debian9-WS2

sudo ip link add link ens7 name ens7.55 type vlan id 55
sudo ip addr add 10.10.10.2/24 brd 10.10.10.255 dev ens7.55
sudo ip link set dev ens7 up
sudo ip link set dev ens7.55 up

Debian9-WS3

sudo ip link add link ens7 name ens7.55 type vlan id 55
sudo ip addr add 10.10.10.3/24 brd 10.10.10.255 dev ens7.55
sudo ip link set dev ens7 up
sudo ip link set dev ens7.55 up

Stille Geräte (Silent Devices)

Schön zu sehen ist dieser Effekt mit den Debian-VMs, die anders als Windows-Systeme, nicht regelmäßig vor sich herkommunizieren.

OS6900-Oben-> show spb isis services
Legend: * indicates locally configured ISID
SPB ISIS Services Info:
                      System
    ISID      BVLAN   (Name : BMAC)                           MCAST(T/R)
------------+-------+----------------------------------------+-----------

ISIDs:     0


OS6900-Oben-> show mac-learning domain spb
Legend: Mac Address: * = address not valid,

        Mac Address: & = duplicate static address,

   Domain    Vlan/SrvcId[ISId/vnId]     Mac Address           Type          Operation          Interface
------------+----------------------+-------------------+------------------+-------------+-------------------------

 Total number of Valid MAC addresses above = 0

Setzt man nun einen Ping ab, werden die Dienste wieder „gelernt“ oder man konfiguriert den Port entsprechend um. Seit AOS 8.5R4 kann man dafür den Service „fest“ auf den UNP-Port binden.

OS6900-Oben-> show configuration snapshot da-unp
! DA-UNP:
unp profile "systemDefault10000000"
unp profile "systemDefault10000055"
unp profile "systemDefault10000000" map service-type spb tag-value 0 isid 10000000 bvlan 4000 multicast-mode headend vlan-xlation
unp profile "systemDefault10000055" map service-type spb tag-value 55 isid 10000055 bvlan 4007 multicast-mode headend vlan-xlation
unp port 1/1/3 port-type access
unp port 1/1/3 port-template accessDefaultPortTemplate

OS6900-Oben-> unp port 1/1/3 profile systemDefault10000055

OS6900-Oben-> show spb isis services
Legend: * indicates locally configured ISID
SPB ISIS Services Info:
                      System
    ISID      BVLAN   (Name : BMAC)                           MCAST(T/R)
------------+-------+----------------------------------------+-----------
* 10000055     4007   OS6900-Oben         : e8:e7:32:11:ca:d1

ISIDs:     1
OS6900-Unten-> show configuration snapshot da-unp
! DA-UNP:
unp profile "systemDefault10000000"
unp profile "systemDefault10000055"
unp profile "systemDefault10000000" map service-type spb tag-value 0 isid 10000000 bvlan 4000 multicast-mode headend vlan-xlation
unp profile "systemDefault10000055" map service-type spb tag-value 55 isid 10000055 bvlan 4007 multicast-mode headend vlan-xlation
unp port 1/1/5 port-type access
unp port 1/1/5 port-template accessDefaultPortTemplate

OS6900-Unten-> unp port 1/1/5 profile systemDefault10000055

OS6900-Unten-> show spb isis services
Legend: * indicates locally configured ISID
SPB ISIS Services Info:
                      System
    ISID      BVLAN   (Name : BMAC)                           MCAST(T/R)
------------+-------+----------------------------------------+-----------
* 10000055     4007   OS6900-Oben         : e8:e7:32:11:ca:d1
* 10000055     4007   OS6900-Unten        : e8:e7:32:11:ca:ed

ISIDs:     2

OS6900-Unten-> show mac-learning domain spb
Legend: Mac Address: * = address not valid,

        Mac Address: & = duplicate static address,

   Domain    Vlan/SrvcId[ISId/vnId]     Mac Address           Type          Operation          Interface
------------+----------------------+-------------------+------------------+-------------+-------------------------
       SPB           32775:10000055   00:25:90:5d:e3:64            dynamic    servicing              sap:1/1/5:55
       SPB           32775:10000055   00:25:90:5d:e3:65            dynamic    servicing           sdp:32782:32775

 Total number of Valid MAC addresses above = 2

Das unp profile sorgt dafür dass der SAP im egress bestehend bleibt, so dass das Gerät (das vergessen wurde) weiterhin für Anfragen erreichbar ist.

OS6860-> show service spb 32775 ports
Legend: (*) dyn unicast object (+) remote mcast object (#) local mcast object
SPB Service 32775 (Dynamic Service isid=10000055 for UNP)
  Admin : Up,        Oper  : Up,     Stats      : N,         Mtu     : 9194,   VlanXlation : Y,
  ISID  : 10000055,   BVlan : 4007,   MCast-Mode : Headend,   Tx/Rx   : 0/0,    RemoveIngTag: N

                                       Sap Trusted:Priority/         Sap Description /
Identifier             Adm  Oper Stats Sdp SystemId:BVlan   Intf     Sdp SystemName
----------------------+----+----+-----+--------------------+--------+--------------------------------
sap:1/1/17:55*         Up   Up    N           Y:x           1/1/17   Dynamic SAP for UNP
sdp:32775:32775*       Up   Up    Y    e8e7.3211.cad1:4007  0/127    OS6900-Oben
sdp:32791:32775*       Up   Up    Y    e8e7.3211.caed:4007  0/126    OS6900-Unten

Total Ports: 3

OS6860-> show mac-learning domain spb
Legend: Mac Address: * = address not valid,

        Mac Address: & = duplicate static address,

   Domain    Vlan/SrvcId[ISId/vnId]     Mac Address           Type          Operation          Interface
------------+----------------------+-------------------+------------------+-------------+-------------------------
       SPB           32775:10000055   00:25:90:5d:e3:64            dynamic    servicing           sdp:32791:32775

 Total number of Valid MAC addresses above = 1

Nun ein ping von 10.10.10.1 → 10.10.10.3

benny@debian9ws1:~$ ping 10.10.10.3
PING 10.10.10.3 (10.10.10.3) 56(84) bytes of data.
64 bytes from 10.10.10.3: icmp_seq=6 ttl=64 time=0.264 ms
64 bytes from 10.10.10.3: icmp_seq=7 ttl=64 time=0.239 ms
^C

Das System ist nun wieder erreichbar. Ich muss hier mit den US-Kollegen mal sprechen ob es dem erwarteten Verhalten entspricht dass hier die ersten Pakete verloren gehen (ISIS-LSDB etc).

OS6860-> show mac-learning domain spb
Legend: Mac Address: * = address not valid,

        Mac Address: & = duplicate static address,

   Domain    Vlan/SrvcId[ISId/vnId]     Mac Address           Type          Operation          Interface
------------+----------------------+-------------------+------------------+-------------+-------------------------
       SPB           32775:10000055   00:25:90:5d:e1:7f            dynamic    servicing             sap:1/1/17:55
       SPB           32775:10000055   00:25:90:5d:e3:64            dynamic    servicing           sdp:32791:32775

 Total number of Valid MAC addresses above = 2

Konfiguration OS6860

! Chassis:
system name "OS6860"

! Configuration:
configuration error-file-limit 2

! Capability Manager:
hash-control extended

! Virtual Flow Control:
! LFP:
! Interface:
! Port_Manager:
! Link Aggregate:
linkagg lacp agg 126 size 16 hash tunnel-protocol admin-state enable
linkagg lacp agg 126 name "Created by Auto-Fabric on Tue Jun 18 19:32:57 2019"
linkagg lacp agg 126 actor admin-key 65534
linkagg lacp agg 127 size 16 hash tunnel-protocol admin-state enable
linkagg lacp agg 127 name "Created by Auto-Fabric on Tue Jun 18 19:32:57 2019"
linkagg lacp agg 127 actor admin-key 65535
linkagg lacp port 1/1/25 actor admin-key 65535
linkagg lacp port 1/1/27 actor admin-key 65534

! VLAN:
vlan 1 admin-state enable
vlan 100 admin-state enable
spb bvlan 4000 admin-state enable
spb bvlan 4000 name "AutoFabric 6/18/2019 19:33:16"
spb bvlan 4001-4015 admin-state enable
spb bvlan 4001-4015 name "AutoFabric 6/18/2019 19:33:16"
vlan 100 members port 1/1/17 untagged

! PVLAN:
! Spanning Tree:
spantree mode flat
spantree vlan 1 admin-state enable
spantree vlan 100 admin-state enable
spantree vlan 4000 admin-state disable
spantree vlan 4001 admin-state disable
spantree vlan 4002 admin-state disable
spantree vlan 4003 admin-state disable
spantree vlan 4004 admin-state disable
spantree vlan 4005 admin-state disable
spantree vlan 4006 admin-state disable
spantree vlan 4007 admin-state disable
spantree vlan 4008 admin-state disable
spantree vlan 4009 admin-state disable
spantree vlan 4010 admin-state disable
spantree vlan 4011 admin-state disable
spantree vlan 4012 admin-state disable
spantree vlan 4013 admin-state disable
spantree vlan 4014 admin-state disable
spantree vlan 4015 admin-state disable

! DA-UNP:
unp profile "systemDefault10000000"
unp profile "systemDefault10000055"
unp profile "systemDefault10000000" map service-type spb tag-value 0 isid 10000000 bvlan 4000 multicast-mode headend vlan-xlation
unp profile "systemDefault10000055" map service-type spb tag-value 55 isid 10000055 bvlan 4007 multicast-mode headend vlan-xlation
unp port 1/1/17 port-type access
unp port 1/1/17 port-template accessDefaultPortTemplate

! Bridging:
! Port Mirroring:
! Port Mapping:
! IP:
ip interface dhcp-client vlan 1 ifindex 1
ip interface dhcp-client option-60 OmniSwitch-OS6860E-P24

! IPv6:
! IPSec:
! IPMS:
! AAA:
aaa authentication default "local"
aaa authentication console "local"
aaa authentication ssh "local"

aaa tacacs command-authorization disable

! NTP:
ntp server clock0.ovcirrus.com
ntp server clock1.ovcirrus.com
ntp server clock2.ovcirrus.com
ntp server clock3.ovcirrus.com
ntp client admin-state enable

! QOS:
! Policy Manager:
! VLAN Stacking:
! ERP:
! MVRP:
mvrp enable

! LLDP:
! UDLD:
! Server Load Balance:
! High Availability Vlan:
! Session Manager:
session cli timeout 999
session prompt default "OS6860->"

! Web:
! Trap Manager:
! Health Monitor:
! System Service:
ip domain-name home
ip name-server 192.168.2.1
ip domain-lookup

! SNMP:
! BFD:
! IP Route Manager:
! VRRP:
! UDP Relay:
! RIP:
! OSPF:
! IP Multicast:
! DVMRP:
! IPMR:
! RIPng:
! OSPF3:
! BGP:
! ISIS:
! Module:
! LAN Power:
! RDP:
! DHL:
! Ethernet-OAM:
! SAA:
! SPB-ISIS:
spb isis bvlan 4000 ect-id 1
spb isis bvlan 4001 ect-id 2
spb isis bvlan 4002 ect-id 3
spb isis bvlan 4003 ect-id 4
spb isis bvlan 4004 ect-id 5
spb isis bvlan 4005 ect-id 6
spb isis bvlan 4006 ect-id 7
spb isis bvlan 4007 ect-id 8
spb isis bvlan 4008 ect-id 9
spb isis bvlan 4009 ect-id 10
spb isis bvlan 4010 ect-id 11
spb isis bvlan 4011 ect-id 12
spb isis bvlan 4012 ect-id 13
spb isis bvlan 4013 ect-id 14
spb isis bvlan 4014 ect-id 15
spb isis bvlan 4015 ect-id 16
spb isis control-bvlan 4000
spb isis interface linkagg 126-127
spb isis admin-state enable

! SVCMGR:
! LDP:
! EVB:
! APP-FINGERPRINT:
! FCOE:
! QMR:
! OPENFLOW:
! Dynamic auto-fabric:
auto-fabric admin-state enable

! SIP Snooping:
! DHCP Server:
! DHCPv6 Relay:
! DHCPv6 Snooping:
! DHCPv6 Server:
! DHCP Message Service:
! DHCP Active Lease Service:
! Virtual Chassis Split Protection:
! DHCP Snooping:
! APP-MONITORING:
! Loopback Detection:
loopback-detection enable

! VM-SNOOPING:
! PPPOE-IA:
! Security:
! Zero Configuration:
! MAC Security:
! OVC:
! EFM-OAM:
! ALARM-MANAGER:
! DEVICE-PROFILE:
! PTP:
! IP DHCP RELAY:
! TEST-OAM:
! LOOPBACK TEST:
! UDP6 RELAY:
! MGMT AGENT:

Konfiguration OS6900-Oben

! Chassis:
system name "OS6900-Oben"

! Configuration:
configuration error-file-limit 2

! Capability Manager:
! Virtual Flow Control:
! LFP:
! Interface:
! Port_Manager:
! Link Aggregate:
linkagg lacp agg 126 size 16 hash tunnel-protocol admin-state enable
linkagg lacp agg 126 name "Created by Auto-Fabric on Tue Jun 18 17:39:35 2019"
linkagg lacp agg 126 actor admin-key 65534
linkagg lacp agg 127 size 16 hash tunnel-protocol admin-state enable
linkagg lacp agg 127 name "Created by Auto-Fabric on Tue Jun 18 17:32:58 2019"
linkagg lacp agg 127 actor admin-key 65535
linkagg lacp port 1/1/1 actor admin-key 65534
linkagg lacp port 1/1/13 actor admin-key 65535

! VLAN:
vlan 1 admin-state enable
vlan 100 admin-state enable
spb bvlan 4000 admin-state enable
spb bvlan 4000 name "AutoFabric 6/18/2019 17:33:17"
spb bvlan 4001-4015 admin-state enable
spb bvlan 4001-4015 name "AutoFabric 6/18/2019 17:33:17"
vlan 100 members port 1/1/3 untagged

! PVLAN:
! Spanning Tree:
spantree mode flat
spantree vlan 1 admin-state enable
spantree vlan 100 admin-state enable
spantree vlan 4000 admin-state disable
spantree vlan 4001 admin-state disable
spantree vlan 4002 admin-state disable
spantree vlan 4003 admin-state disable
spantree vlan 4004 admin-state disable
spantree vlan 4005 admin-state disable
spantree vlan 4006 admin-state disable
spantree vlan 4007 admin-state disable
spantree vlan 4008 admin-state disable
spantree vlan 4009 admin-state disable
spantree vlan 4010 admin-state disable
spantree vlan 4011 admin-state disable
spantree vlan 4012 admin-state disable
spantree vlan 4013 admin-state disable
spantree vlan 4014 admin-state disable
spantree vlan 4015 admin-state disable

! DA-UNP:
unp profile "systemDefault10000000"
unp profile "systemDefault10000055"
unp profile "systemDefault10000000" map service-type spb tag-value 0 isid 10000000 bvlan 4000 multicast-mode headend vlan-xlation
unp profile "systemDefault10000055" map service-type spb tag-value 55 isid 10000055 bvlan 4007 multicast-mode headend vlan-xlation
unp port 1/1/3 port-type access
unp port 1/1/3 port-template accessDefaultPortTemplate

! Bridging:
! Port Mirroring:
! Port Mapping:
! IP:
ip interface dhcp-client vlan 1 ifindex 1
ip interface dhcp-client option-60 OmniSwitch-OS6900-X20

! IPv6:
! IPSec:
! IPMS:
! AAA:
aaa authentication default "local"
aaa authentication console "local"
aaa authentication ssh "local"

aaa tacacs command-authorization disable

! NTP:
ntp server clock0.ovcirrus.com
ntp server clock1.ovcirrus.com
ntp server clock2.ovcirrus.com
ntp server clock3.ovcirrus.com
ntp client admin-state enable

! QOS:
! Policy Manager:
! VLAN Stacking:
! ERP:
! MVRP:
mvrp enable

! LLDP:
! UDLD:
! Server Load Balance:
! High Availability Vlan:
! Session Manager:
session cli timeout 999
session prompt default "OS6900-Oben->"

! Web:
! Trap Manager:
! Health Monitor:
! System Service:
ip domain-name home
ip name-server 192.168.2.1
ip domain-lookup

! SNMP:
! BFD:
! IP Route Manager:
! VRRP:
! UDP Relay:
! RIP:
! OSPF:
! IP Multicast:
! DVMRP:
! IPMR:
! RIPng:
! OSPF3:
! BGP:
! ISIS:
! Module:
! LAN Power:
! RDP:
! DHL:
! Ethernet-OAM:
! SAA:
! SPB-ISIS:
spb isis bvlan 4000 ect-id 1
spb isis bvlan 4001 ect-id 2
spb isis bvlan 4002 ect-id 3
spb isis bvlan 4003 ect-id 4
spb isis bvlan 4004 ect-id 5
spb isis bvlan 4005 ect-id 6
spb isis bvlan 4006 ect-id 7
spb isis bvlan 4007 ect-id 8
spb isis bvlan 4008 ect-id 9
spb isis bvlan 4009 ect-id 10
spb isis bvlan 4010 ect-id 11
spb isis bvlan 4011 ect-id 12
spb isis bvlan 4012 ect-id 13
spb isis bvlan 4013 ect-id 14
spb isis bvlan 4014 ect-id 15
spb isis bvlan 4015 ect-id 16
spb isis control-bvlan 4000
spb isis interface linkagg 126-127
spb isis admin-state enable

! SVCMGR:
! LDP:
! EVB:
! APP-FINGERPRINT:
! FCOE:
fibre-channel vsan 1 admin-state enable name DEFAULT

! QMR:
! OPENFLOW:
! Dynamic auto-fabric:
auto-fabric admin-state enable

! SIP Snooping:
! DHCP Server:
! DHCPv6 Relay:
! DHCPv6 Snooping:
! DHCPv6 Server:
! DHCP Message Service:
! DHCP Active Lease Service:
! Virtual Chassis Split Protection:
! DHCP Snooping:
! APP-MONITORING:
! Loopback Detection:
loopback-detection enable

! VM-SNOOPING:
! PPPOE-IA:
! Security:
! Zero Configuration:
! MAC Security:
! OVC:
! EFM-OAM:
! ALARM-MANAGER:
! DEVICE-PROFILE:
! PTP:
! IP DHCP RELAY:
! TEST-OAM:
! LOOPBACK TEST:
! UDP6 RELAY:
! MGMT AGENT:

Konfiguration OS6900-Unten

! Chassis:
system name "OS6900-Unten"

! Configuration:
configuration error-file-limit 2

! Capability Manager:
! Virtual Flow Control:
! LFP:
! Interface:
! Port_Manager:
! Link Aggregate:
linkagg lacp agg 126 size 16 hash tunnel-protocol admin-state enable
linkagg lacp agg 126 name "Created by Auto-Fabric on Tue Jun 18 17:39:35 2019"
linkagg lacp agg 126 actor admin-key 65534
linkagg lacp agg 127 size 16 hash tunnel-protocol admin-state enable
linkagg lacp agg 127 name "Created by Auto-Fabric on Tue Jun 18 17:32:58 2019"
linkagg lacp agg 127 actor admin-key 65535
linkagg lacp port 1/1/1 actor admin-key 65534
linkagg lacp port 1/1/13 actor admin-key 65535

! VLAN:
vlan 1 admin-state enable
vlan 100 admin-state enable
spb bvlan 4000 admin-state enable
spb bvlan 4000 name "AutoFabric 6/18/2019 17:33:17"
spb bvlan 4001-4015 admin-state enable
spb bvlan 4001-4015 name "AutoFabric 6/18/2019 17:33:17"
vlan 100 members port 1/1/5 untagged

! PVLAN:
! Spanning Tree:
spantree mode flat
spantree vlan 1 admin-state enable
spantree vlan 100 admin-state enable
spantree vlan 4000 admin-state disable
spantree vlan 4001 admin-state disable
spantree vlan 4002 admin-state disable
spantree vlan 4003 admin-state disable
spantree vlan 4004 admin-state disable
spantree vlan 4005 admin-state disable
spantree vlan 4006 admin-state disable
spantree vlan 4007 admin-state disable
spantree vlan 4008 admin-state disable
spantree vlan 4009 admin-state disable
spantree vlan 4010 admin-state disable
spantree vlan 4011 admin-state disable
spantree vlan 4012 admin-state disable
spantree vlan 4013 admin-state disable
spantree vlan 4014 admin-state disable
spantree vlan 4015 admin-state disable

! DA-UNP:
unp profile "systemDefault10000000"
unp profile "systemDefault10000055"
unp profile "systemDefault10000000" map service-type spb tag-value 0 isid 10000000 bvlan 4000 multicast-mode headend vlan-xlation
unp profile "systemDefault10000055" map service-type spb tag-value 55 isid 10000055 bvlan 4007 multicast-mode headend vlan-xlation
unp port 1/1/5 port-type access
unp port 1/1/5 port-template accessDefaultPortTemplate

! Bridging:
! Port Mirroring:
! Port Mapping:
! IP:
ip interface dhcp-client vlan 1 ifindex 1
ip interface dhcp-client option-60 OmniSwitch-OS6900-X20

! IPv6:
! IPSec:
! IPMS:
! AAA:
aaa authentication default "local"
aaa authentication console "local"
aaa authentication ssh "local"

aaa tacacs command-authorization disable

! NTP:
ntp server clock0.ovcirrus.com
ntp server clock1.ovcirrus.com
ntp server clock2.ovcirrus.com
ntp server clock3.ovcirrus.com
ntp client admin-state enable

! QOS:
! Policy Manager:
! VLAN Stacking:
! ERP:
! MVRP:
mvrp enable

! LLDP:
! UDLD:
! Server Load Balance:
! High Availability Vlan:
! Session Manager:
session cli timeout 999
session prompt default "OS6900-Unten->"

! Web:
! Trap Manager:
! Health Monitor:
! System Service:
ip domain-name home
ip name-server 192.168.2.1
ip domain-lookup

! SNMP:
! BFD:
! IP Route Manager:
! VRRP:
! UDP Relay:
! RIP:
! OSPF:
! IP Multicast:
! DVMRP:
! IPMR:
! RIPng:
! OSPF3:
! BGP:
! ISIS:
! Module:
! LAN Power:
! RDP:
! DHL:
! Ethernet-OAM:
! SAA:
! SPB-ISIS:
spb isis bvlan 4000 ect-id 1
spb isis bvlan 4001 ect-id 2
spb isis bvlan 4002 ect-id 3
spb isis bvlan 4003 ect-id 4
spb isis bvlan 4004 ect-id 5
spb isis bvlan 4005 ect-id 6
spb isis bvlan 4006 ect-id 7
spb isis bvlan 4007 ect-id 8
spb isis bvlan 4008 ect-id 9
spb isis bvlan 4009 ect-id 10
spb isis bvlan 4010 ect-id 11
spb isis bvlan 4011 ect-id 12
spb isis bvlan 4012 ect-id 13
spb isis bvlan 4013 ect-id 14
spb isis bvlan 4014 ect-id 15
spb isis bvlan 4015 ect-id 16
spb isis control-bvlan 4000
spb isis interface linkagg 126-127
spb isis admin-state enable

! SVCMGR:
! LDP:
! EVB:
! APP-FINGERPRINT:
! FCOE:
fibre-channel vsan 1 admin-state enable name DEFAULT

! QMR:
! OPENFLOW:
! Dynamic auto-fabric:
auto-fabric admin-state enable

! SIP Snooping:
! DHCP Server:
! DHCPv6 Relay:
! DHCPv6 Snooping:
! DHCPv6 Server:
! DHCP Message Service:
! DHCP Active Lease Service:
! Virtual Chassis Split Protection:
! DHCP Snooping:
! APP-MONITORING:
! Loopback Detection:
loopback-detection enable

! VM-SNOOPING:
! PPPOE-IA:
! Security:
! Zero Configuration:
! MAC Security:
! OVC:
! EFM-OAM:
! ALARM-MANAGER:
! DEVICE-PROFILE:
! PTP:
! IP DHCP RELAY:
! TEST-OAM:
! LOOPBACK TEST:
! UDP6 RELAY:
! MGMT AGENT:
omniswitch-spb-network-debian.txt · Zuletzt geändert: 2024/06/09 10:29 von 127.0.0.1
Donate Powered by PHP Valid HTML5 Valid CSS Driven by DokuWiki
