AOS Release 8 und WebView 2.0 (WebGUI & API)

In diesem Artikel werden die ersten Schritte mit dem AOS Release 8 WebView 2.0 beschrieben.

Installation/Inbetriebnahme von WebView 2.0

Prüfen welche Pakete bisher vorhanden sind

BennyE@mbp ~ % ssh admin@router
Password:
 ________  ________  ________           ________  ________
|\   __  \|\   __  \|\   ____\         |\   __  \|\   __  \
\ \  \|\  \ \  \|\  \ \  \___|_        \ \  \|\  \ \  \|\  \
 \ \   __  \ \  \\\  \ \_____  \        \ \   _  _\ \   __  \
  \ \  \ \  \ \  \\\  \|____|\  \        \ \  \\  \\ \  \|\  \
   \ \__\ \__\ \_______\____\_\  \        \ \__\\ _\\ \_______\
    \|__|\|__|\|_______|\_________\        \|__|\|__|\|_______|
                       \|_________|
					       OmniSwitch 6465T
Router->
Router-> pkgmgr list
Legend: (+) indicates package is not saved across reboot
        (*) indicates packages will be installed or removed after reload
 Name                Version           Status             Install Script
---------------+---------------------+------------------+---------------------------------
  ams           default               installed          default
  ams-apps      default               installed          default
Router->

Hochladen des WebView 2.0 Pakets

Bitte darauf achten dass das WebView 2.0 Paket zum verwendeten AOS passt!

Router-> show microcode working
   /flash/working
   Package           Release                 Size     Description
-----------------+-------------------------+---------+-----------------------------------
Nos.img           8.7.354.R01               219355400 Alcatel-Lucent OS

BennyE@mbp Downloads % scp package-webview-8.7.R01-354.deb admin@router:/flash/working/pkg
Password:
package-webview-8.7.R01-354.deb                                                                                                                                        100%   12MB   1.5MB/s   00:07

Prüfen der Checksumme des WebView 2.0 Pakets

Router-> pkgmgr verify package-webview-8.7.R01-354.deb
Verifying MD5 checksum.. OK

Installation des WebView 2.0 Pakets

Router-> pkgmgr install package-webview-8.7.R01-354.deb
Verifying MD5 checksum.. OK
System Memory check.. PASS
Extracting control files for package package-webview-8.7.R01-354.deb .. OK
Package Dependency check.. PASS
Unpacking webview (from /flash/working/pkg/package-webview-8.7.R01-354.deb)...
Setting up webview (8.7.R01-354)...
Installing package package-webview-8.7.R01-354.deb .. OK
Commit is required complete package webview installation

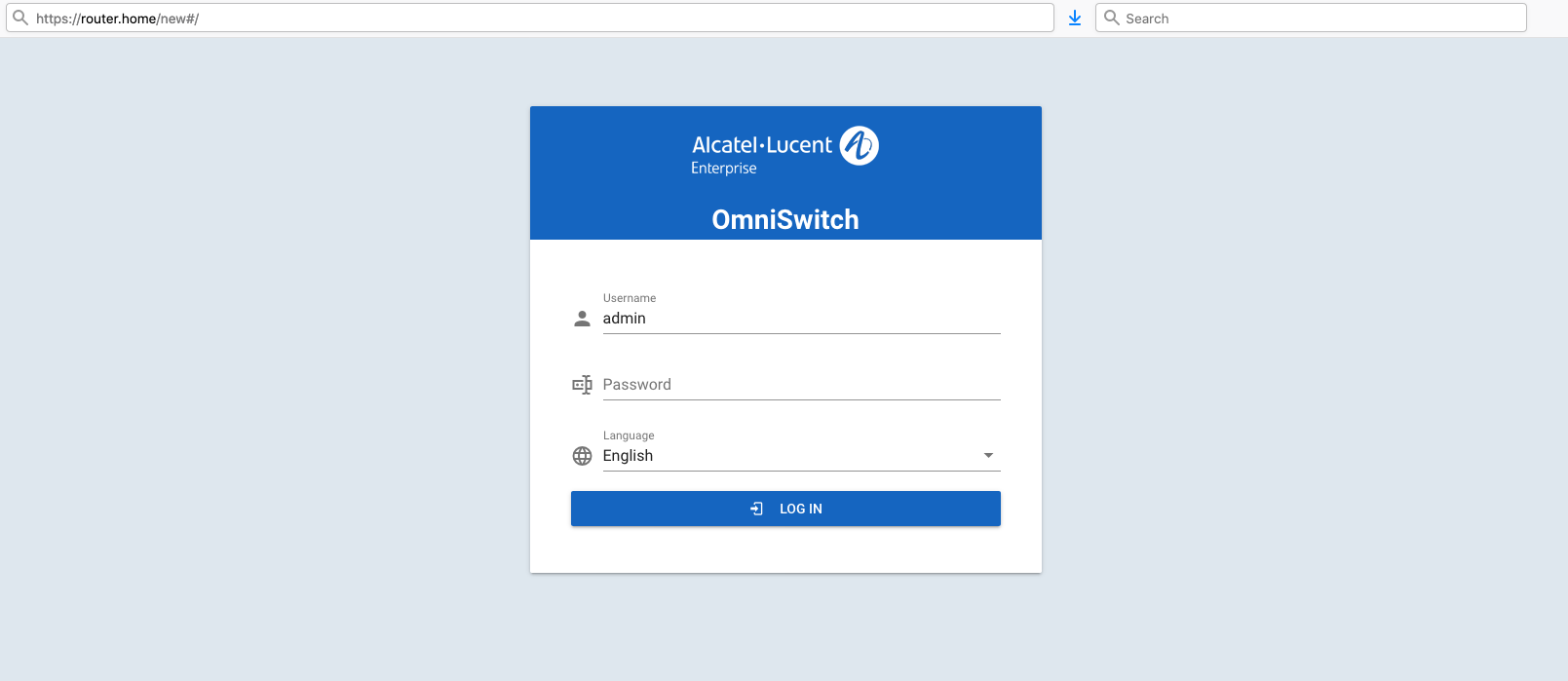

Ein Neustart ist nicht notwendig! Der Zugriff ist nun via WebGUI möglich (siehe folgender Screenshot), aber die Applikation noch nicht bootfest gemacht!

Router-> pkgmgr list
Legend: (+) indicates package is not saved across reboot
        (*) indicates packages will be installed or removed after reload
 Name                Version           Status             Install Script
---------------+---------------------+------------------+---------------------------------
  ams           default               installed          default
  ams-apps      default               installed          default
+ webview       8.7.R01-354           installed          /flash/working/pkg/webview/install.sh

WebView 2.0 Applikation bootfest machen

Router-> pkgmgr commit
Package(s) Committed
Router->
Router-> pkgmgr list
Legend: (+) indicates package is not saved across reboot
        (*) indicates packages will be installed or removed after reload
 Name                Version           Status             Install Script
---------------+---------------------+------------------+---------------------------------
  ams           default               installed          default
  ams-apps      default               installed          default
  webview       8.7.R01-354           installed          /flash/working/pkg/webview/install.sh
Router->

Verwendung der WebView 2.0 API

API: Login und Ausgabe der Systemfunktionen

Ausgabe in der CMD-Box/Shell

% python3 print_capabilities.py
OS6465T-P12
{
    "802dot1AD_QOSDEICFI": true,
    "802dot1Q": false,
    "AAA_8021X": false,
    "AAA_SERVERS": true,
    "ACCESS_GUARDIAN": true,
    "ACTIVE_LEASES": true,
    "ALARM_MGR": true,
    "APP_FP": false,
    "APP_MON": false,
    "AUTOFABRIC_ALL_PROTOCOLS": false,
    "AUTO_FABRIC": true,
    "AVLAN": false,
    "BFD_STD": true,
    "BGP": false,
    "CHS_INLINEPOWER": true,
    "CHS_INLINEPOWER_802_DOT_3BT": false,
    "CHS_INLINEPOWER_CHASSISPOEMGT": false,
    "CHS_INLINEPOWER_FAST_POE": false,
    "CHS_INLINEPOWER_PERPAETUAL_POE": false,
    "CHS_INLINEPOWER_POWER_OVER_HDMI": false,
    "CHS_INLINEPOWER_REDUNDANCY": false,
    "CHS_MACALLOC": false,
    "CHS_STACKSTATICROUTE": false,
    "CHS_VRF": false,
    "CPE_TEST_HEAD": true,
    "DHCPV4_SRV": true,
    "DHCPV6_SRV": true,
    "DHCP_SNOOPING": true,
    "DISTRIBUTED_ARP": false,
    "DPI": true,
    "DVMRP": false,
    "DVMRP_BFD": true,
    "DYING_GASP": true,
    "EFMOAM": true,
    "ERP": true,
    "ESMDRV_HYBRID": false,
    "ETHOAM": true,
    "ETH_BEACON": false,
    "ETH_SERVICES": true,
    "FIPS": false,
    "HARDWARE_LOOPBACK": true,
    "HLTH_FABRIC": false,
    "INITIAL_PACKET_BUFFER": false,
    "IPMS_BRIDGING": true,
    "IPMS_HACLUSTER": true,
    "IPMS_IPV6": true,
    "IPMS_SSM_MAP": true,
    "IPSEC": false,
    "IPV6": true,
    "IPV6_LPND": false,
    "IPV6_LPND_RAF": true,
    "IPV6_REDIST": true,
    "IP_DISTRIBUTED_ARP": true,
    "IP_SERVICE": false,
    "IP_TUNNEL": false,
    "ISIS": false,
    "KERBEROS_SNOOPING": true,
    "L2GRE": false,
    "L2GRE_AUTO_DISCOVER": false,
    "L2GRE_RESERVED_VLAN": false,
    "LBD": true,
    "LFP": true,
    "LLDP_TRUSTAGENT": false,
    "MAC_SEC": true,
    "MAC_VXLAN": false,
    "MARVELL": true,
    "MPLS_LDP": true,
    "MSG_SRV": true,
    "MVRP": true,
    "OLD_VRRP": false,
    "OPENFLOW": false,
    "OSPF": false,
    "OSPF3": false,
    "PIM": false,
    "PMIRR_TAGREMOVE": false,
    "PORT-MAPPING": true,
    "PORT_MIRRORING_LINK_AGG": false,
    "PPPOE": false,
    "PTP": true,
    "QOS_VFC": true,
    "RDP": false,
    "RIPng": true,
    "ROUTER_AUTH_CAPTIVE_PORTAL": true,
    "SIP_SNOOPING": false,
    "SLB": false,
    "SL_QUARANTINE": false,
    "SPB_RFP": false,
    "SVC_ACCESS_PORT": true,
    "SVC_MGR": false,
    "SVC_SPB": true,
    "SVC_VXLAN": true,
    "SYSTEM_BLUETOOTH": true,
    "SYSTEM_BOOTROM": false,
    "SYSTEM_DEVICEPROFILE": true,
    "SYSTEM_FPGACMM": true,
    "SYSTEM_FPGANI": true,
    "SYSTEM_ISSU": true,
    "SYSTEM_LANPOWER": true,
    "SYSTEM_LICENSE": true,
    "SYSTEM_RFS": true,
    "SYSTEM_UBOOTCMM": true,
    "SYSTEM_UPDATE": true,
    "SYSTEM_UPLOAD": false,
    "SYSTEM_USBRECOVERY": false,
    "TCAM_MANAGER": false,
    "TDR": true,
    "TRANSPARENT_BRIDGING": false,
    "UDLD": true,
    "VC_HELLO_CONFIG": true,
    "VC_SPLIT_HELPER": true,
    "VC_SPLIT_PROTECTION": true,
    "VC_VFL_CONFIG": true,
    "VFC_GLOBAL_CONFIG": true,
    "VIRTUAL_CHASSIS": true,
    "VLAN_DHL": true,
    "VLAN_IPMVLAN": false,
    "VLAN_PORTMOBILITY": false,
    "VLAN_PVLAN": false,
    "VM_SNOOPING": false,
    "VNP_802dot1X": true,
    "VRRP": true,
    "VRRP3": true,
    "VSTK_ETHERNET_SERVICE_TUNNELMAC": true,
    "VSTK_ETHERNET_SERVICE_UNI_PROFILE": true,
    "WLAN": true,
    "ZERO_CONF": false,
    "alaAutoFabricRemoveVCReload": true,
    "alaChasEntPhysFanSpeed": true,
    "alaEServiceSapProfileEgressBW": true,
    "alaQoSConditionIpv6NH": false,
    "alaQoSConfigSwitchGroup": true,
    "chasEntPhysPowerUsed": true,
    "chasSupervisionRfsDfFlashFree": false,
    "healthDeviceTemperatureChasLatest": true,
    "lldpXMedFastStartRepeatCount": false,
    "slMacLearningVlanControlStatus": true
}
{
    "data": {
        "write-all": "true"
    },
    "username": "admin"
}
{
    "alaVirtualRouterNameTable": {
        "default": "default"
    },
    "current": "default"
}
{
    "alaVrConfigBgpStatus": "2",
    "alaVrConfigDvmrpStatus": "2",
    "alaVrConfigIsisStatus": "2",
    "alaVrConfigMplsLdpStatus": "2",
    "alaVrConfigOspf3Status": "2",
    "alaVrConfigOspfStatus": "2",
    "alaVrConfigPimStatus": "2",
    "alaVrConfigRipStatus": "2",
    "alaVrConfigRipngStatus": "2",
    "alaVrConfigVrrpStatus": "1"
}

Quellcode für das obige Beispiel

print_capabilities.py

#!/usr/bin/env python3

import sys
try:
    import requests
except ImportError as ie:
    print(ie)
    sys.exit("Please install python-requests!")
import urllib3
import json
from mysecrets import mysecrets

# Modify the mysecrets.py
fqdn = mysecrets["fqdn"]
username = mysecrets["username"]
password = mysecrets["password"]
validate_https_certificate = mysecrets["validate_https_certificate"]
# This will not work directly, as the params have to be urlencoded
#login_url = "https://{0}/?domain=auth&username={1}&password={2}".format(fqdn, username, password)
omniswitch_url = "https://{0}/".format(fqdn)

login_params = {
    "domain":"auth",
    "username":username,
    "password":password
}

req_headers = {
    "Accept":"application/vnd.alcatellucentaos+json",
    "ALU_CONTEXT":"vrf=default"
}

if(validate_https_certificate.lower() == "yes"):
    check_certs = True
else:
    # This is needed to get rid of a warning coming from urllib3 on self-signed certificates
    # print("[!] Ignoring certificate warnings or self-signed certificates!")
    # print("[!] You should really fix this!")
    urllib3.disable_warnings(urllib3.exceptions.InsecureRequestWarning)
    check_certs = False

# req will also hold a session cookie for all following interactions
req = requests.Session()

# Login and obtain cookie for session
resp = req.get(omniswitch_url, params=login_params, headers=req_headers, verify=check_certs)
if resp.status_code == 200:
    # resp.json() will contain something like {'result': {'domain': 'auth (login)', 'diag': 200, 'error': '', 'output': '', 'data': []}}
    if resp.json()["result"]["diag"] == 400:
        sys.exit(resp.json()["result"]["error"])
    elif resp.json()["result"]["diag"] == 200:
        pass
    else:
        sys.exit("Something went wrong: {0}".format(resp.json()))

getwebview_params = {
    "domain":"callFunction",
    "function":"getWebviewInformation"
}

resp = req.get(omniswitch_url, params=getwebview_params, headers=req_headers, verify=check_certs)
if resp.status_code == 200:
    # resp.json() will contain something like {'result': {'domain': 'auth (login)', 'diag': 200, 'error': '', 'output': '', 'data': []}}
    if resp.json()["result"]["diag"] == 400:
        sys.exit(resp.json()["result"]["error"])
    elif resp.json()["result"]["diag"] == 200:
        for k, v in resp.json()["result"]["data"].items():
            if isinstance(v, str):
                print(v)
            elif isinstance(v, dict):
                print(json.dumps(v, indent=4, sort_keys=True))
    else:
        sys.exit("Something went wrong: {0}".format(resp.json()))

mysecrets.py

mysecrets = {
    "fqdn":"omniswitch.fqdn",
    "username":"admin",
    "password":"password",
    "validate_https_certificate":"no"
}
